Description

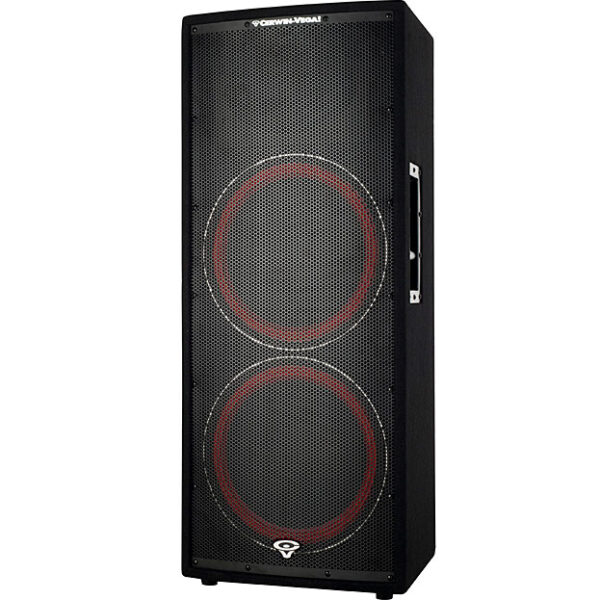

CVi-252
PASSIVE PORTABLE PA SPEAKER
DESCRIPTION
The CVi-252 is a portable, full-range, dual fifteen-inch quasi 3-way main loudspeaker system designed for live music and playback applications. The CVi-252 features two high power, cast frame, fifteen-inch transducers with a 2.5-inch voice coil to handle the low and low/midrange frequencies and a 34mm PETP (polyethylene terephthalate) diaphragm compression driver mounted to an 80° H x 50° V Hemi conical horn for smooth, accurate on and off-axis high-frequency performance. Advanced crossover network designs are employed for coherent cross-band summation throughout the coverage pattern.
Applications:
- Portable live sound PA
- DJ system PA
- Auditoriums
- Drum monitor sub
- Clubs
- Outdoor stages
Featured Data:
- Model – CVi-252
- System Configuration – Quasi 3-Way main
- Connections – 2 ea.—¼” Phone Jack and Neutrik Speakon
- Low-Frequency System – Dual Reflex loaded 15″ transducer
- High-Frequency System – 1-inch exit 80° H x 50° V
- Enclosure Type – Vented, trapezoid
- Enclosure Structure – 18mm OSB, internal bracing
- External Covering – Black polypropylene fiber
- Grille Material – 18 gauge black powder-coated steel
Performance Data:
- Frequency Response – +/- 3 dB 62 Hz—12 kHz
- Operating Range – -10 dB 39 Hz—20 kHz
- Nominal Impedance (Ohms) – Full Range 4 Ohms
- Axial Sensitivity (dB SPL, 1W / 1M) – Full Range 99 dB
- Calculated Maximum Output (dB SPL, @ 1M) – Full Range 132 dB
- Power Handling (Watts) – RMS 500 W / Program 1000 W / Peak 2000 W
- Nominal Directivity / -6dB points (Degrees) – Horizontal: 80° / Vertical: 50°
Weight 95.5 Lbs. (43.3 kg)
Dimensions 45.50″ (1155mm) x 18.50″ (470mm) x 17.25″ (438mm)
